Interactive Java Programs


Program Description Run the program
Divided polygon into triangules by adding diagonals Triangulation
The smallest convex set containing the points Graham
Partition a plane Voronoi


Every Polygon P of n vertices may be divided into triangules by adding diagonals. We will illusrate the idea by the applet called Triangulation. The program is according to the following algorithm.

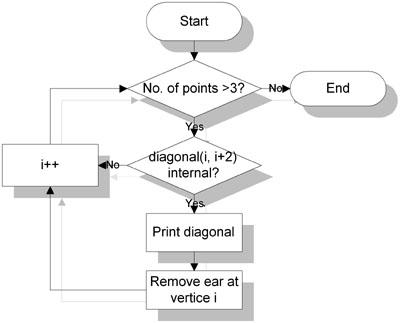

SIMPLE TRIANGULATION ALGORITHM


The Convex Hull of a set of points S is the set of all convex combinations of points of S. In other words, it is the smallest convex set containing the points.

We will show the idea in applet Graham which is according to Graham's Algorithm.

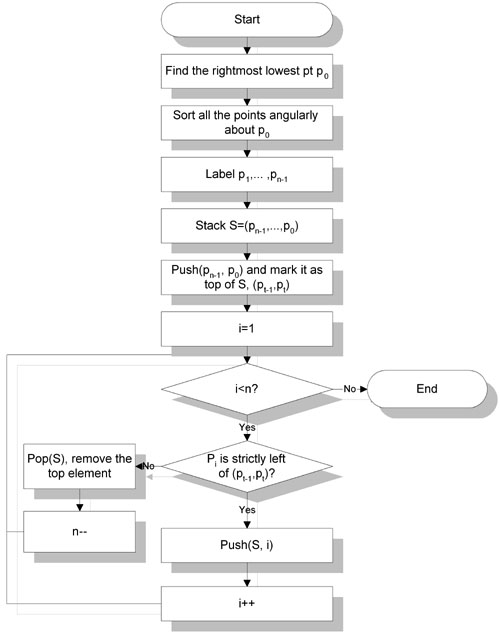

GRAHAM'S ALGORITHM




We will show another idea in applet Incremental which is according to Incremental Algorithm.

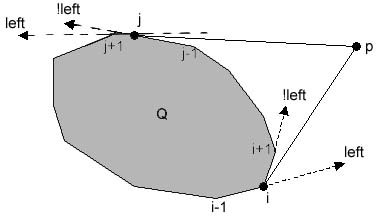

how to find the 2 tangent points?

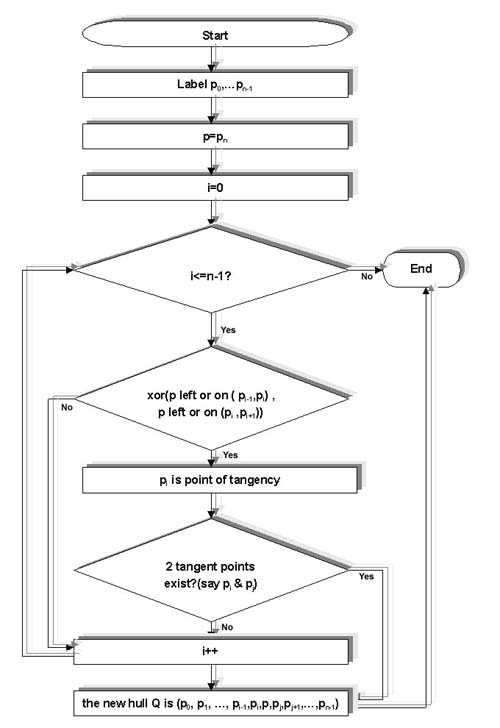

INCREMENTAL ALGORITHM



Let P = {P1, P2,..., Pn} be a set of points in a plane. These are called the sites. Partition the plane by assigning every point in the plane to its nearest site. Voronoi Diagram V(p) is a set of points that have more than one nearest neigbour.

We will demostrate by the applet Voronoi.
